Isuzu Red Color Water Tank Fire Truck 2000kg Capacity EURO 6
| Place of Origin | China |
|---|---|
| Brand Name | Yunhe |
| Certification | CCC(F) |
| Model Number | WHG5070GXFSG20/WVIA |
| Minimum Order Quantity | 1 |
| Price | USD 44.7—52.1 thousands/per truck |
| Packaging Details | Naked |
| Delivery Time | 50 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 trucks per year |
Product Details
| Product Name | Isuzu Water Tank Fire Truck | Color | Red |
|---|---|---|---|
| Overall Dimensions (mm) | 6830×1930×2850 | Gross weight (kg) | 6800 |
| Wheelbase(mm) | 3815 | Emission Standard | EURO 6 |
| Displacement (ml) | 2999 | Max Speed（km/h） | 95 |
| Tank Capacity | Water 2000kg | Fire Pump | Rated Flow (L/S) 20L/s@1.0MPa |
| Fire Monitor | Range ≥45m | ||
| Highlight | Water Tank Fire Truck 2000kg,Water Tank Fire Truck EURO 6,Isuzu red water truck |
||
Product Description

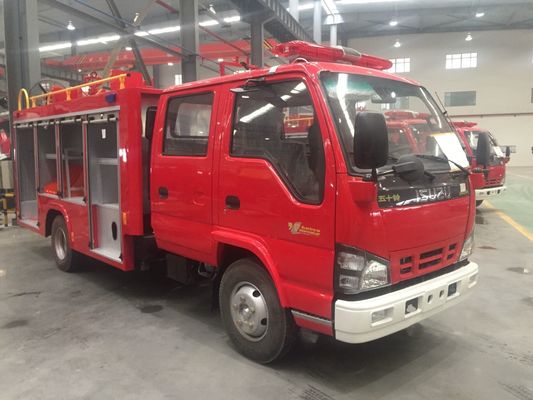

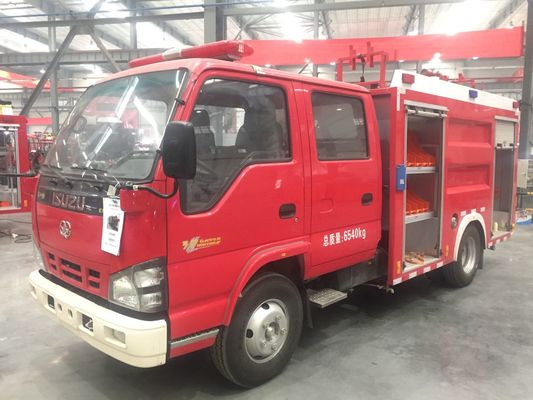

Isuzu Water Tank Fire Truck
I,Main Product Specifications
| Product Name | ISUZU water tank fire truck | ||
| Model | WHG5070GXFSG20/WVIA | ||
| Chassis parameters | Chassis Model | QL1070BUKWY | |
| Overall dimensions (mm) | 6830×1930×2850 | ||
| Gross weight (kg) | 6800 | ||
| Passengers in cab | 2+3 | ||
| Wheelbase(mm) | 3815 | ||
| Engine model | 4KH1CN6LB | ||
| Engine power(kw) | 88 | ||
| Tire | 7.00R16LT 14PR(6+1) | ||
| Emission standard | EURO 6 | ||
| Displacement (ml) | 2999 | ||
| Max speed(km/h) | 95 | ||
| Fire performance | Tank capacity | Water (kg) | 2000 |
| Fire pump | Model | CB10/20-XZ | |
| Rated flow (L/S) | 20L/s@1.0MPa | ||
| Fire monitor | Model | PS20 | |
| Rated flow (L/S) | 20 | ||
| Range (m) | ≥45 | ||
II,Main characteristics
1,High Mobility.
2,Complete functions ,adequate capacity.
3,Suitable for all kinds of roads,complex terrain;also applied for landscape imigation,Road spraying and so on.
4,Can be used as Major fire truck for urban area.
III,Basic Description
This vehicle has the characteristics of large specific power, large person capacity, strong comprehensive performance, centralized and simple operation and so on. It is especially suitable for fighting oil and other oil fire, it can also provide water and foam mixture to the fire sites, and it is a necessary equipment for petroleum and chemical industry, oil transportation terminal, airport and city professional fire fighting.
IV, International Fire Exhibitions
V,Application Cases
