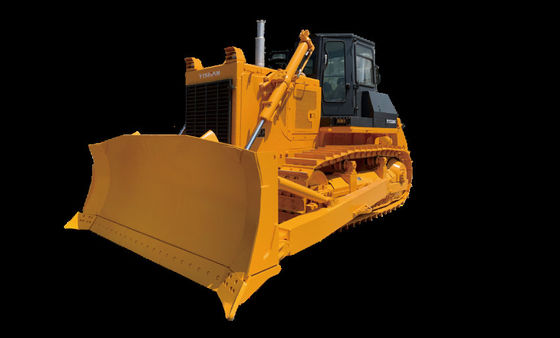

TY320H 2000rpm Crawler Type Dozer Machine For Construction Industrry
  • TY320H 2000rpm Crawler Type Dozer Machine For Construction Industrry

TY320H 2000rpm Crawler Type Dozer Machine For Construction Industrry

Brand Name YISHAN
Model Number TY320H
Product Details
Highlight:

2000rpm Crawler Type Dozer

,

Crawler Type Dozer Machine

,

Construction Dozer Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Payment Terms
T/T, L/C
Product Description

TY320H CRAWLER TYPE BULLDOZER



I.Main Product Specifications

Product Name TY320H CRAWLER TYPE BULLDOZER
Chassis parameters Engine Model QSNT-C345
Overall Dimension 6510×4130×3640mm
Engine Rated Power 257kW/2000rpm
Fuel Consumption ≤220g/kw·h
Operation Weight 34670kg
Max Torque 1509/1400N·m/pm
Forward Speed 3.6/6.6/11.5km/h
Reverse Speed 4.4/7.8/13.5km/h
Emission Standard Erou Ⅲ
Ground Contact Leigh 3150mm
Shoe width 560mm
Blade parameters Blade Dimension 4130×1553mm (W×H)
Blade Capacity 10m³
Blade Max, Ground Clearance 1560mm
Blade Max, Digging Clearance 560mm



II.Main characteristics

TY320H bulldozer is the use of China III. stage engine, powerful power, to meet environmental protection requirements. The use of international advanced technology, should With a number of independent innovation patents to develop a high-power bulldozer, the engine power is large, low fuel consumption, the machine adopts hydraulic transmission Dynamic and hydraulic operation technology, light and flexible operation, reliable quality. Adapt to altitude range operations; New hexahedral driving Room; Ergonomically designed maneuvering layout for wide visibility and comfortable handling.
