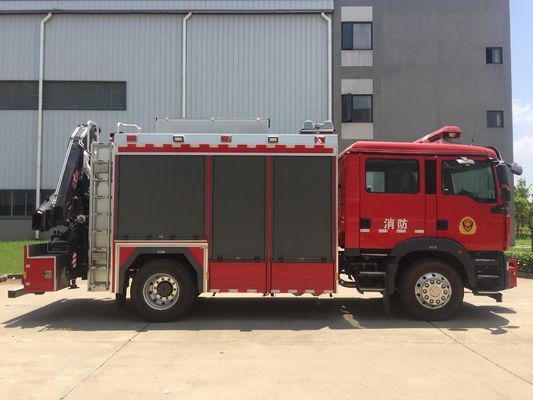

Fire Fighting 4X2 Emergency Rescue Fire Truck 228kw With 5 Ton Crane
| Brand Name | SITRAK |
|---|---|
| Certification | CCC(F) |
| Model Number | WHG5122TXFJY80 |
| Minimum Order Quantity | 1 |
| Packaging Details | \ |
| Delivery Time | 90days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500unit |
Product Details
| Fuel Type | Diesel | Condition | New |
|---|---|---|---|
| Emission Standard | Euro 3,Euro 4,Euro 2,EURO 5 | Horsepower | 310HP |
| Size | 9170mm×2550mm×3685mm | Type | Rescue,Fire Fighting Truck |
| Color | Red | Drive Type | 4*2 Left Hand Drive Or Right Hand Drive |
| Product Name | 4x2 Fire Fighting Truck,fire Fighter Truck,new Fire Truck | Name | Fire Rescue Truck |
| Chassis | SINOTRUK/SITRAK/ISUZU/Dongfeng/foton | Warranty | 12 Months |
| Highlight | 4X2 Emergency Rescue Fire Truck,5 Ton Emergency Rescue Fire Truck,228kw Emergency fire fighting truck |
||
Product Description
SITRAK 228kw 4X2 heavy Fire Fighting And Rescue Truck with 5 ton crane
I,Main Product Specifications
| Product Name | SITRAK Emergency Rescue Fire Truck | ||
| Model | WHG5122TXFJY80 | ||
| Chassis parameters | Chassis Model | ZZ5206N471GF5 | |
| Overall dimensions (mm) | 9170mm×2550mm×3685mm | ||
| Gross weight (kg) | 20100 | ||
| Passengers in cab | 6 | ||
| Wheelbase | 4500 | ||
| Engine model | MC07.31-60 | ||
| Engine power(kw) | 228 | ||
| Tire | 12.00R20(6+1) | ||
| Emission standard | Euro 6 | ||
| Displacement (ml) | 6870 | ||
| Max speed(km/h) | 110 | ||
| Fire performance | Generator | Model | SHT11500(HONDA) |
| Rated power(kw) | 10 | ||
| Lifting lamp | Model | YZH4-5.0CF(4×1000W) | |
| Maxium height of lifter(m) | ≥7 | ||
| Traction winch | Model | N16800XF(USA CHAMPION) | |
| Pulling force(kgf) | 7560 | ||
| Crane | Model | SQZ105D(XCMG) | |
| Maximum load(kg) | 5000 | ||
II,Main characteristics
- With functions of lifting ,self rescue, pulling ,obstacle clearance ,generating lighting,etc.
- Can be equipped with a large number of demolition,detection ,leakage stoppage, protection and other fire equipments or tools.
- Ideal rescue fire fighting vehicle for public security fire forces and petrochemical, oil transportation terminal, airport and other full-time fire brigades
III,Basic Description
JY80 emergency rescue fire truck is equipped with the original U.S. champion electric winch N16800XF; it adopts Honda generator SHT11500; the roof is equipped with lifting lighting system YZH4-5.04CA; and the rear is equipped with a hydraulic truck crane SQ5ZK2 produced by XCMG. The equipment compartment adopts the structure of rotation and pulling, which has a high integration degree, and is convenient to use.
This vehicle has a novel appearance, reasonable layout, and convenient operation, which makes it more close to the needs of the actual rescue, and it is a necessary and ideal rescue fire fighting vehicle for public security fire forces and petrochemical, oil transportation terminal, airport and other full-time fire brigades.
IV, International Fire Exhibitions
V,Application Cases
