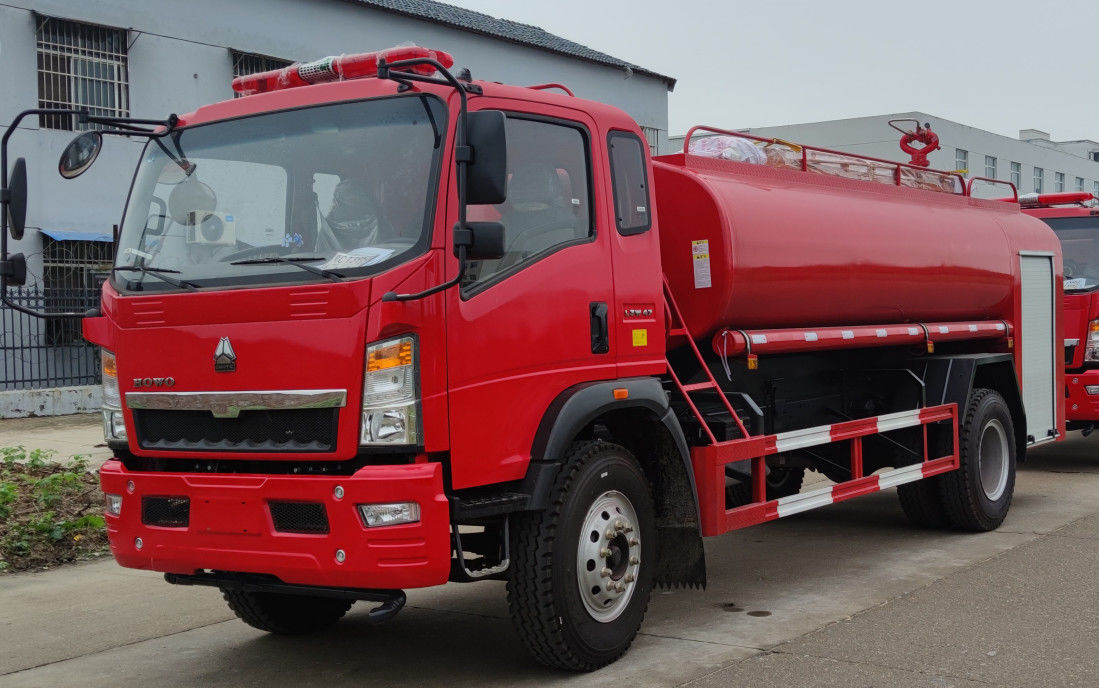

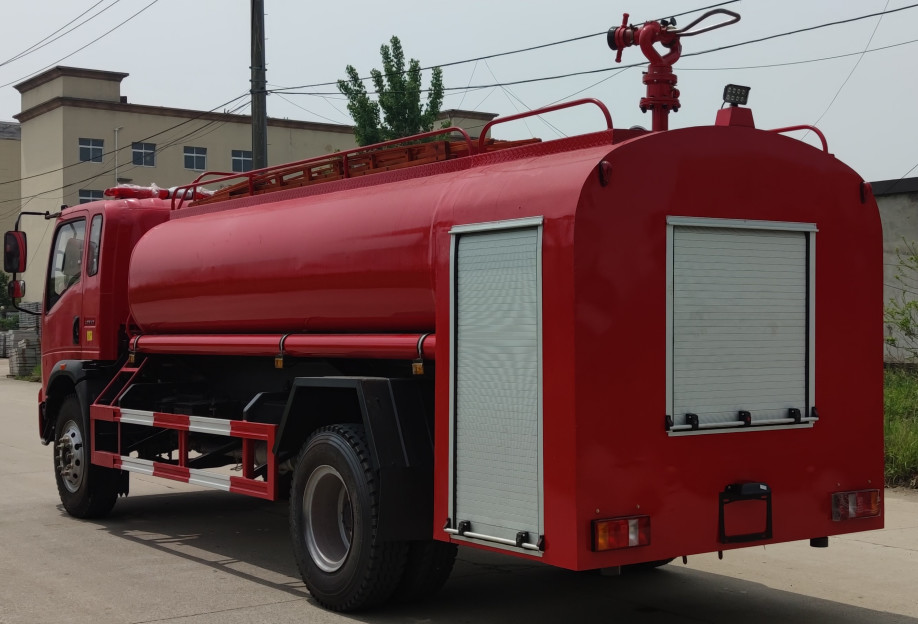

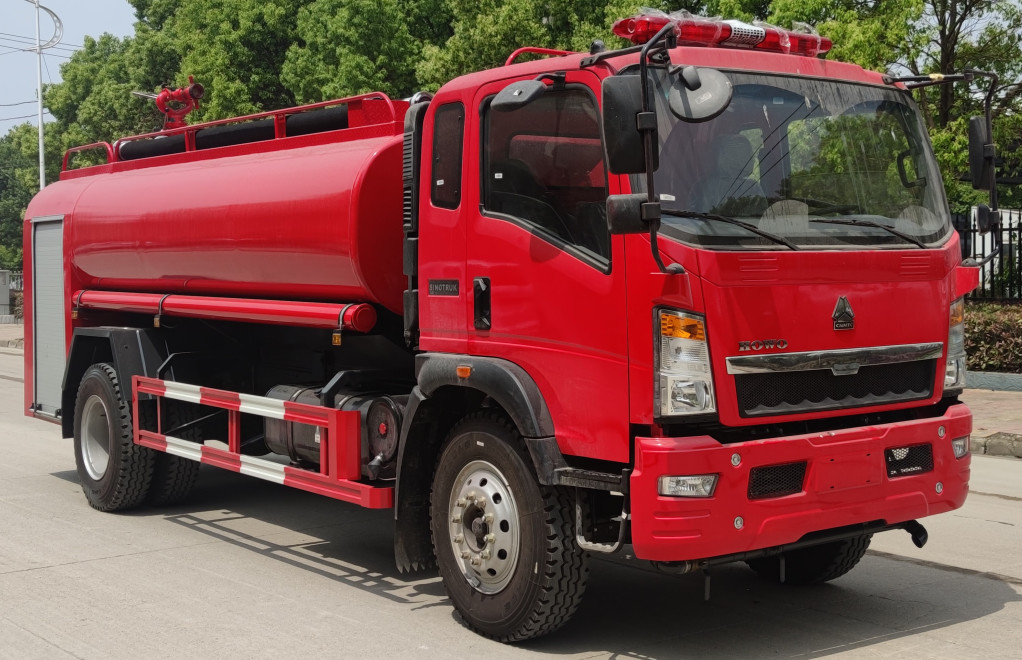

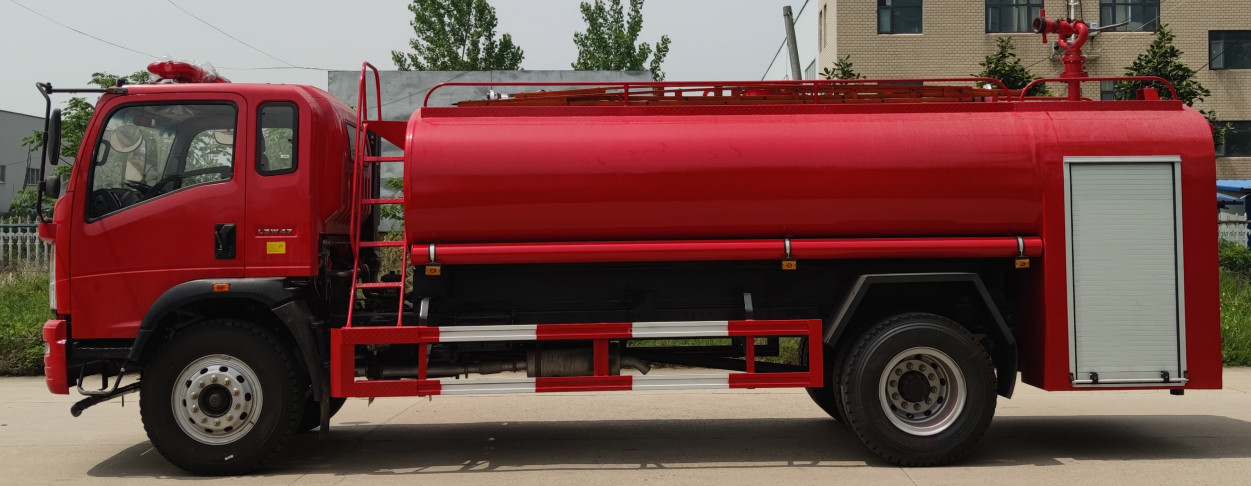

HOWO 160HP Water Tank Fire Truck 4x2 9000L For Emergency Rescue
| Place of Origin | CHINA |
|---|---|
| Brand Name | HOWO |
| Certification | CCC(F) |
| Model Number | WHG5160XFSG40 |
| Minimum Order Quantity | 1 |
| Packaging Details | \ |
| Delivery Time | 90 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 |
Product Details
| Passengers In Cab | 2 | Wheelbase | 4700 |
|---|---|---|---|
| Water Tank | 9000kg | Fire Pump | 40L/s@1.0MPa |
| Fire Monitor | 40L/S;1.0MPa | SIZE | 7870×2400×3400mm |
| GVW | 16000kg | ENGINE | 118kw |
| DRIVING TYPE | 4*2 | COLOR | Red |
| Highlight | 160HP Water Tank Fire Truck,Rescue Water Tank Fire Truck,Water Tank HOWO Fire Truck |
||
Product Description
HOWO 160HP 4*2 9000L WATER BOWSER
I, Main Product Specifications
| Product Name | HOWO 9T WATER BOWSER | ||
| Model | WHG5160XFSG40 | ||
| Chassis parameters | Chassis Model | ZZ1127G4715C1 | |
| Overall dimensions (mm) | 7870×2400×3400mm | ||
| Gross weight (kg) | 16000 | ||
| Passengers in cab | 2 | ||
| Wheelbase(mm) | 4700 | ||
| Engine model | YC4E160-33 | ||
| Engine power(kw) | 118 | ||
| Tire | 10.00R20 | ||
| Emission standard | EURO 3 | ||
| Displacement (ml) | 4257 | ||
| Max speed(km/h) | 90 | ||
| Fire performance | Tank capacity | Water (kg) | 9000 |
| Fire pump | Model | CB10/40 | |
| Rated flow (L/S) | 40L/s@1.0MPa | ||
| Fire monitor | Model | PS40 | |
| Rated flow (L/S) | 40 | ||
| Range (m) | ≥50 | ||
II,Main characteristics
1,High Mobility.
2,Complete functions ,adequate capacity.
3,Suitable for all kinds of roads,complex terrain;also applied for landscape imigation,Road spraying and so on.
4,Can be used as Major fire truck for urban area.
III,Basic Description
This vehicle has the characteristics of large specific power, large person capacity, strong comprehensive performance, centralized and simple operation and so on. It is especially suitable for fighting oil and other oil fire, it can also provide water and foam mixture to the fire sites, and it is a necessary equipment for petroleum and chemical industry, oil transportation terminal, airport and city professional fire fighting.
