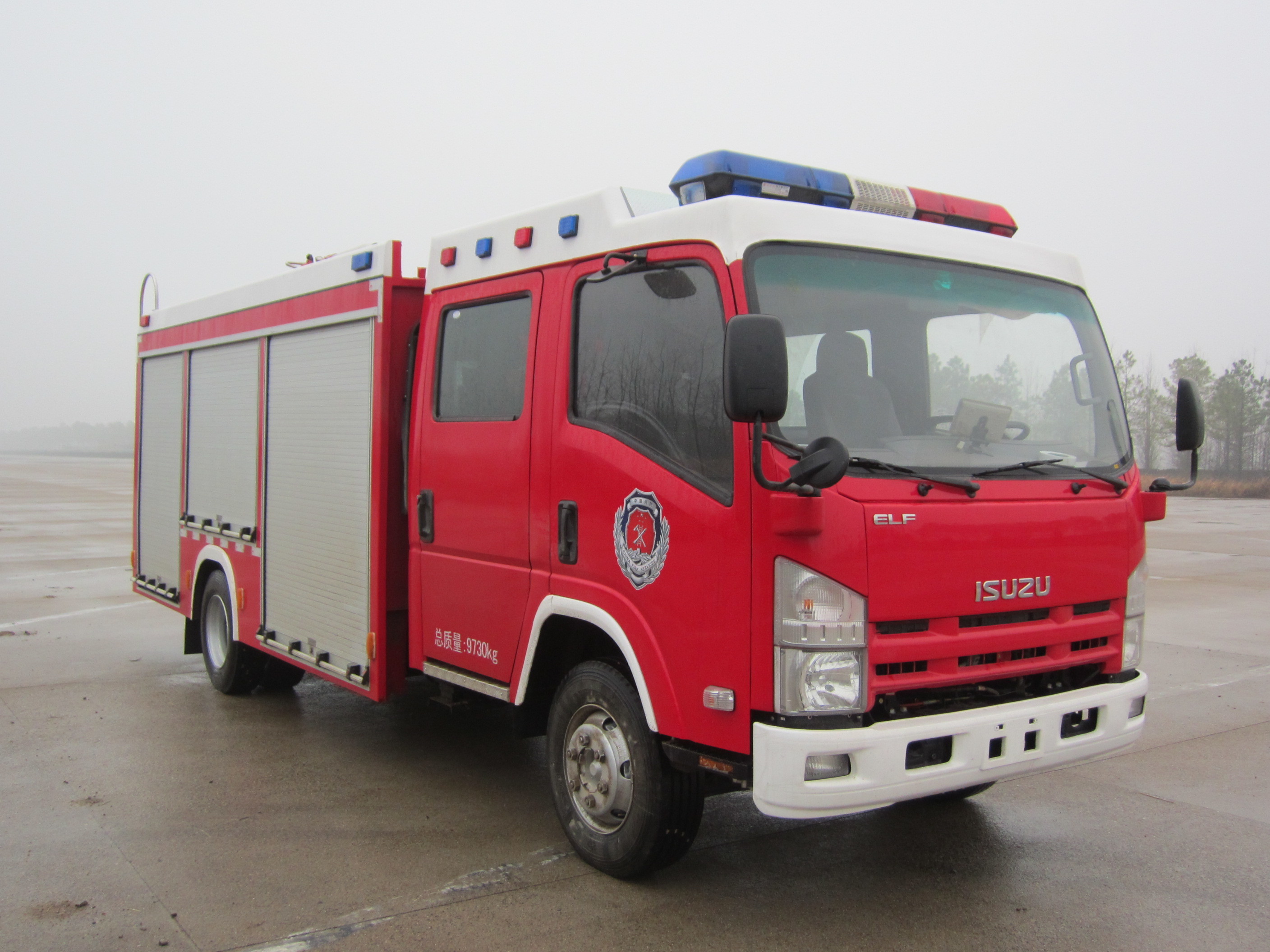

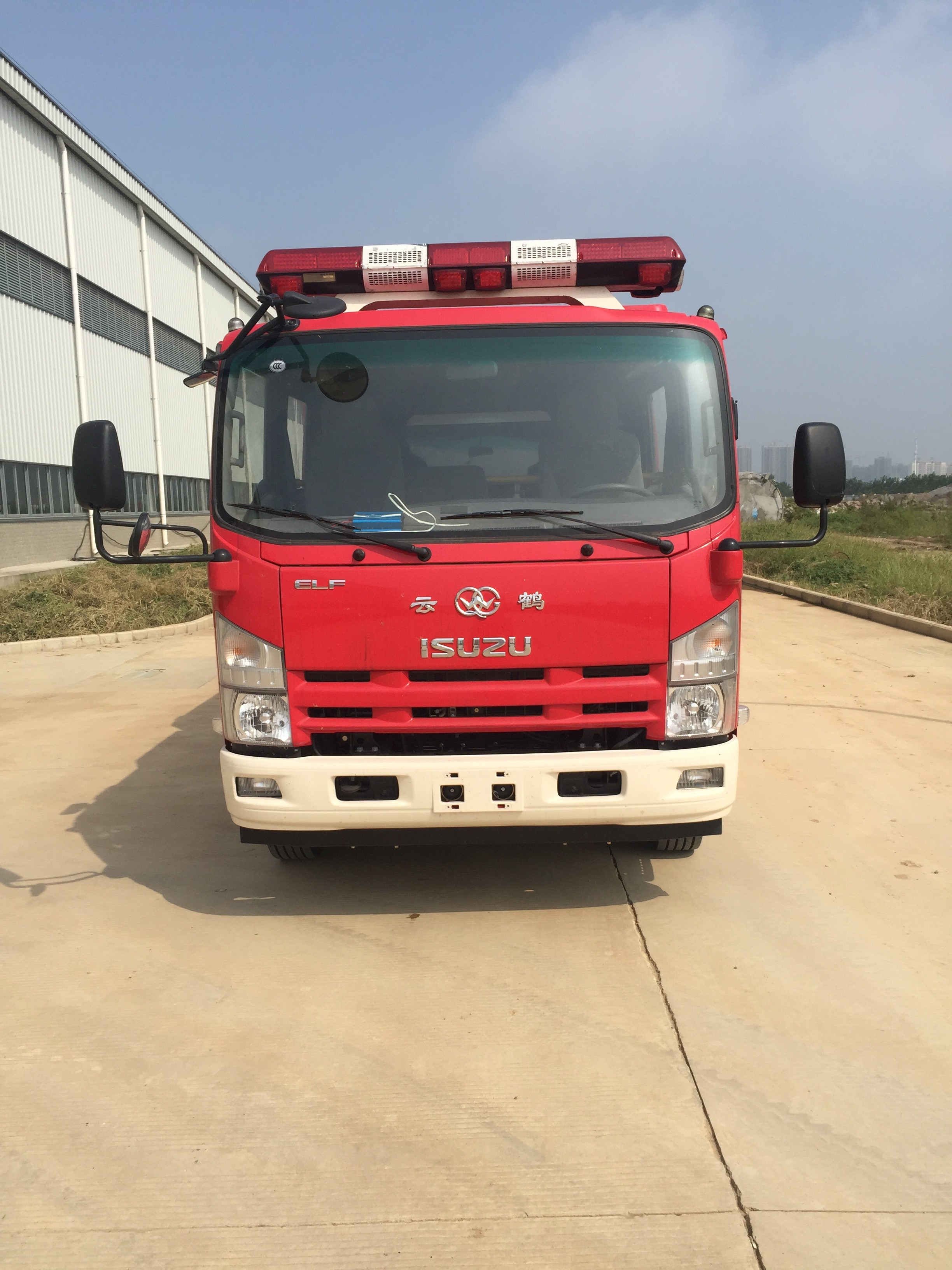

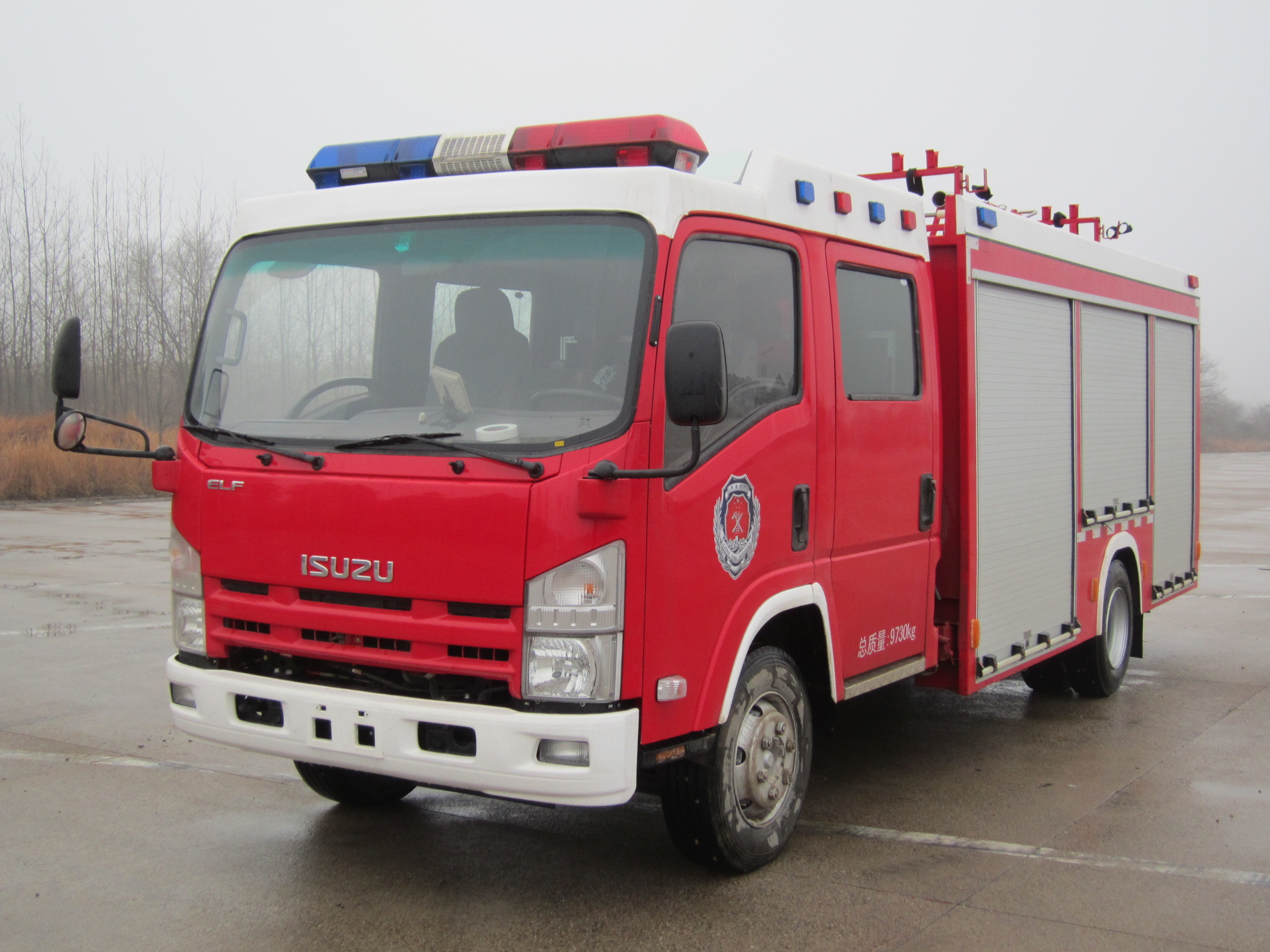

ISUZU Foam Tank Fire Truck
Ⅰ.The Product Specifications
| Product Name |
ISUZU foam tank fire truck |
| Model |
WHG5110GXFPM20/DVIA |
| Chassis parameters |
Chassis Model |
QL10503HARY |
| Overall dimensions (mm) |
6185×1880×2760 |
| Gross weight (kg) |
7500 |
| Passengers in cab |
2+3 |
| Wheelbase(mm) |
3360 |
| Engine model |
4JB1CN |
| Engine power(kw) |
72 |
| Tire |
7.00R15 10PR(6+1) |
| Emission standard |
Euro 4 |
| Displacement (ml) |
2771 |
| Max speed(km/h) |
98 |
| Fire performance |
Tank capacity |
Water (kg) |
1800 |
| Foam(kg) |
450 |
| Fire pump |
Model |
CB10/30-XZ |
| Rated flow (L/S) |
30L/s@1.0MPa |
| Fire monitor |
Model |
PL24 |
| Rated flow (L/S) |
24 |
| Range (m) |
≥50 |
Ⅱ.Main parts Specificaitons
Fire Pump
Model No:CB10/30－XZ fire pump
Type:centrifugal pump
Rated flow:30L/s@1.0Mpa
Outlet pressure:≤1.0 MPa
Fire Monitor
Model No:PL24
Rated flow:24L/s,1.0MPa
Angle:-30-+70°
Range:Water:≥45m Foam:≥40m
Rotation angle:≥360
III.Generic Description

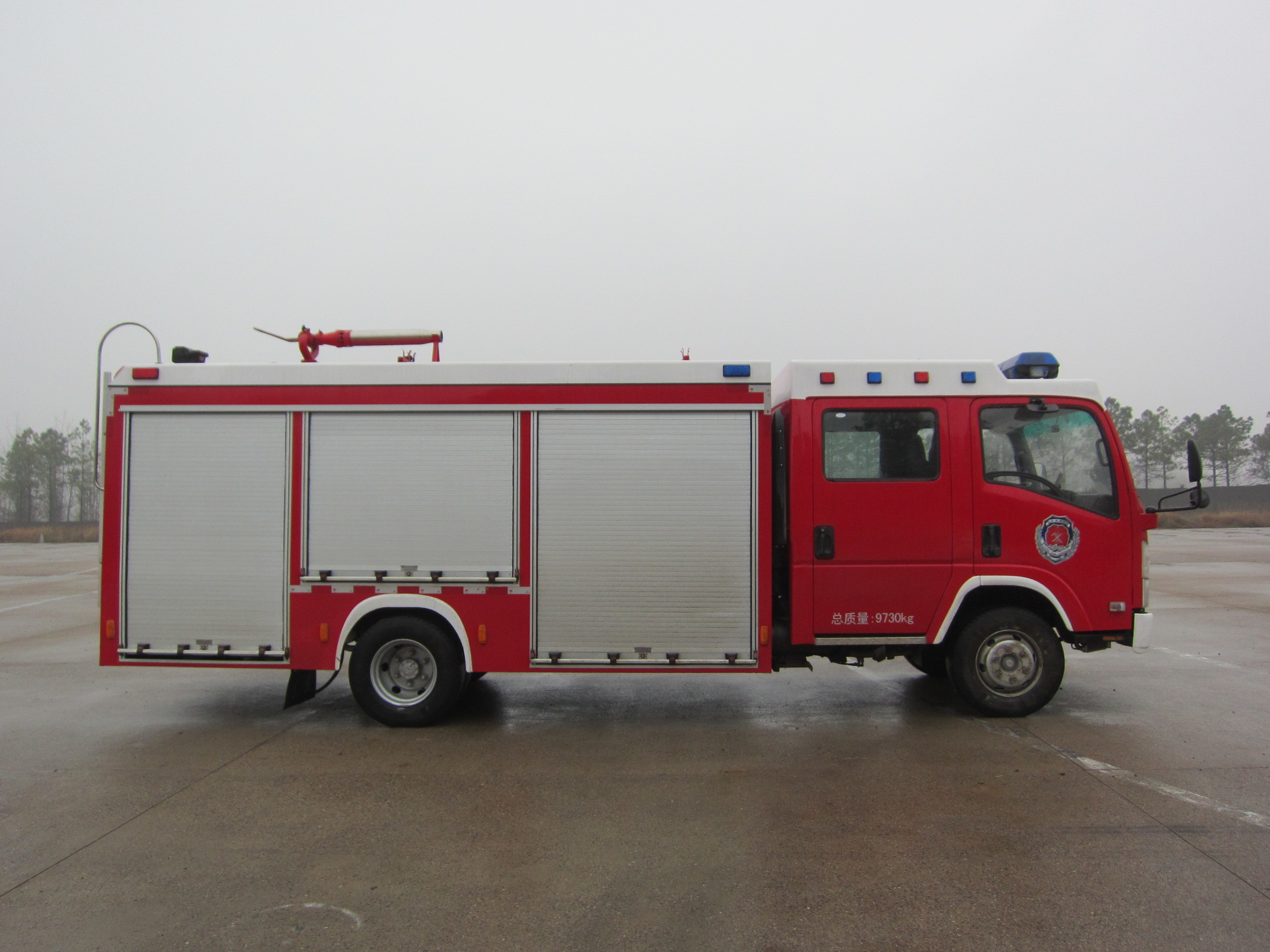

Split frame carriage with symmetrical sides. The front of the carriage and the two sides of the lower skirt in the middle are the equipment boxes, the middle position of the middle of the carriage is exposed independent liquid irrigation, and the rear part of the carriage is the pump room.
Aluminum alloy roller shutter doors are provided on both sides of the carriage and the rear of the pump room, and flip pedals are provided on the lower part of the rolling shutter doors on both sides except for the small equipment box; There is a ladder on the right rear side of the body.
The welded plates and skeleton steel used have undergone strict anti-rust, anti-corrosion, phosphating pickling treatment. The standard parts used are all surface treatment processes such as galvanizing, electroplating or dacromet. After the completion of the tank welding, remove the defects such as slag cleaning and virtual welding, and do a 24-hour hydrostatic pressure test on the tank to ensure that there is no leakage.
Ⅳ. Main characteristics
1, High Mobility.
2, Complete functions ,adequate capacity.
3, Suitable for all kinds of roads,complex terrain;also applied for landscape imigation,Road spraying and so on.
4, Can be used as Major fire truck for urban area.
Ⅴ. Basic Description
This vehicle has the characteristics of large specific power, large person capacity, strong comprehensive performance, centralized and simple operation and so on. It is especially suitable for fighting oil and other oil fire, it can also provide water and foam mixture to the fire sites, and it is a necessary equipment for petroleum and chemical industry, oil transportation terminal, airport and city professional fire fighting.
