HOWO 8000L Foam Fire Truck 6x4 For Landscape Imigation Road Spraying
| Place of Origin | CHINA |
|---|---|
| Brand Name | HOWO |
| Certification | CCC(F) |
| Model Number | WHG5200GXFPM80 |
| Minimum Order Quantity | 1 |
| Packaging Details | \ |
| Delivery Time | 90 DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 |
Product Details
| SIZE | 8445×2500×3610 | GVW | 20000kg |
|---|---|---|---|
| ENGINE | 228kw | DRIVING TYPE | 6*4 |
| CABIN | Double | LIQUID TANK | Water:6000L; Foam:2000L |
| PUMP | 60L/S@1.0Mpa;30L/S@2.0Mpa | MONITOR | 48-64L/S |
| COLOR | Red | ||
| Highlight | Foam Fire Truck 8000L,Landscape Irrigation Foam Fire Truck,Road Spraying Foam Fire Truck |
||
Product Description

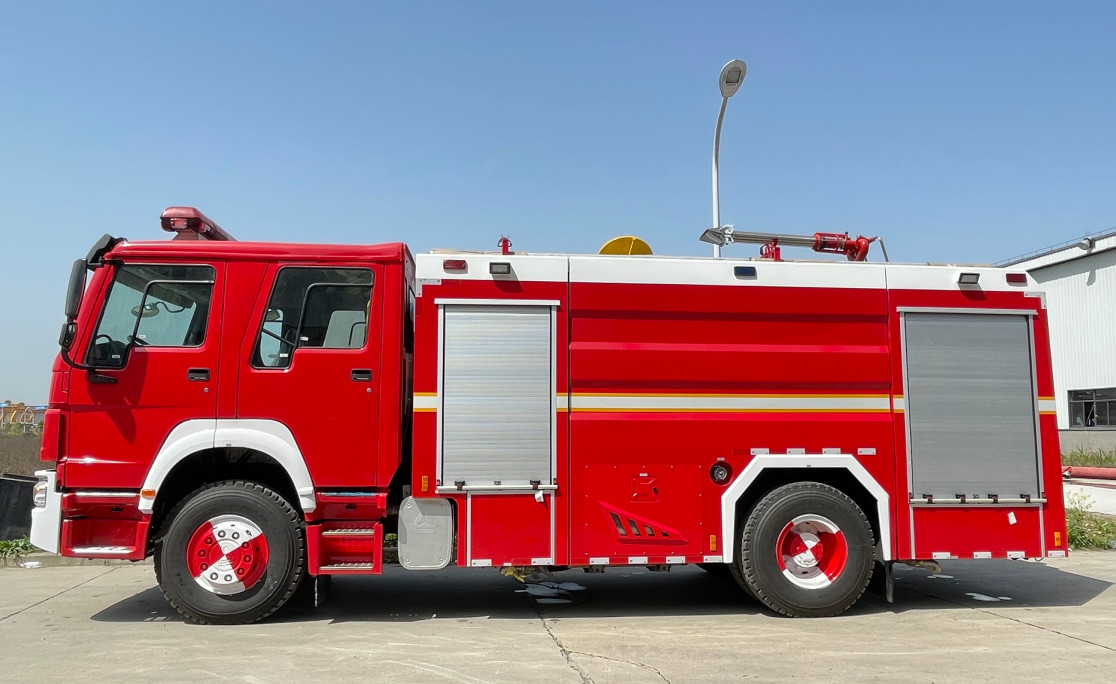

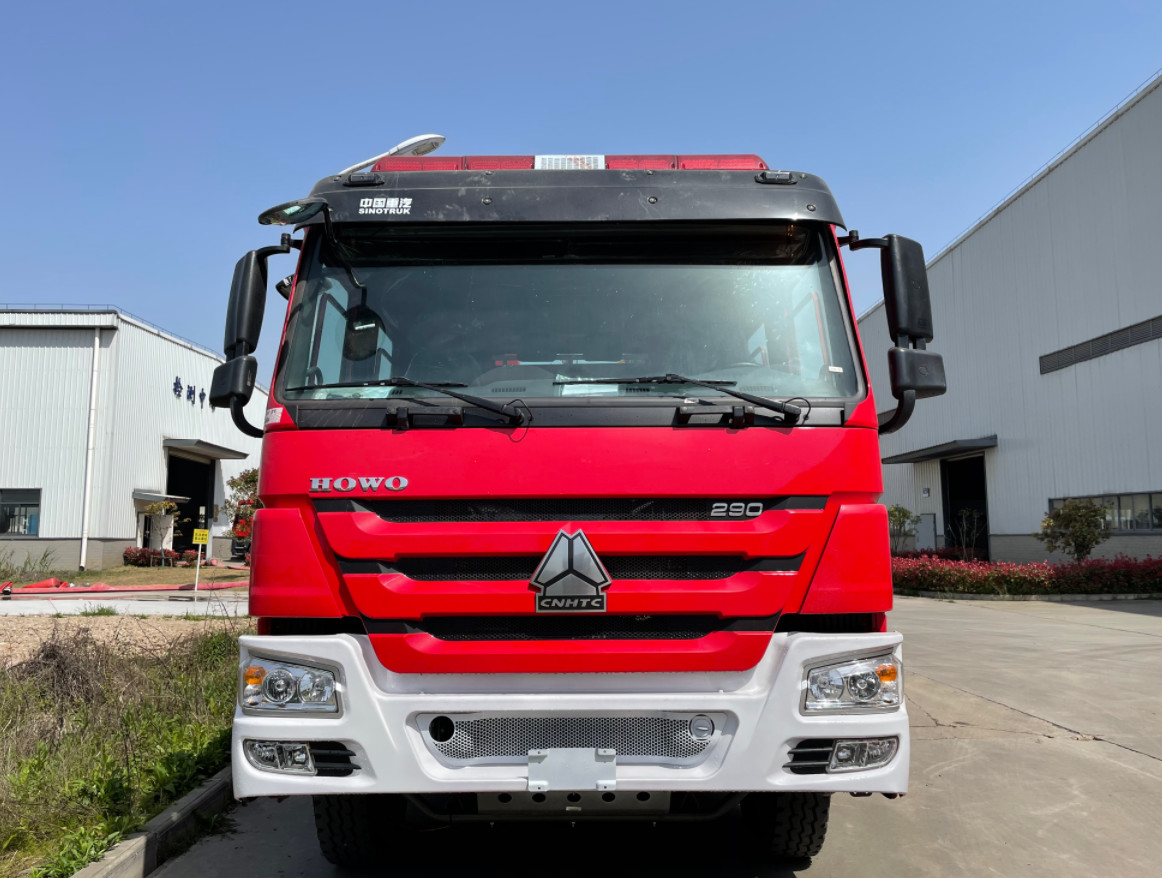

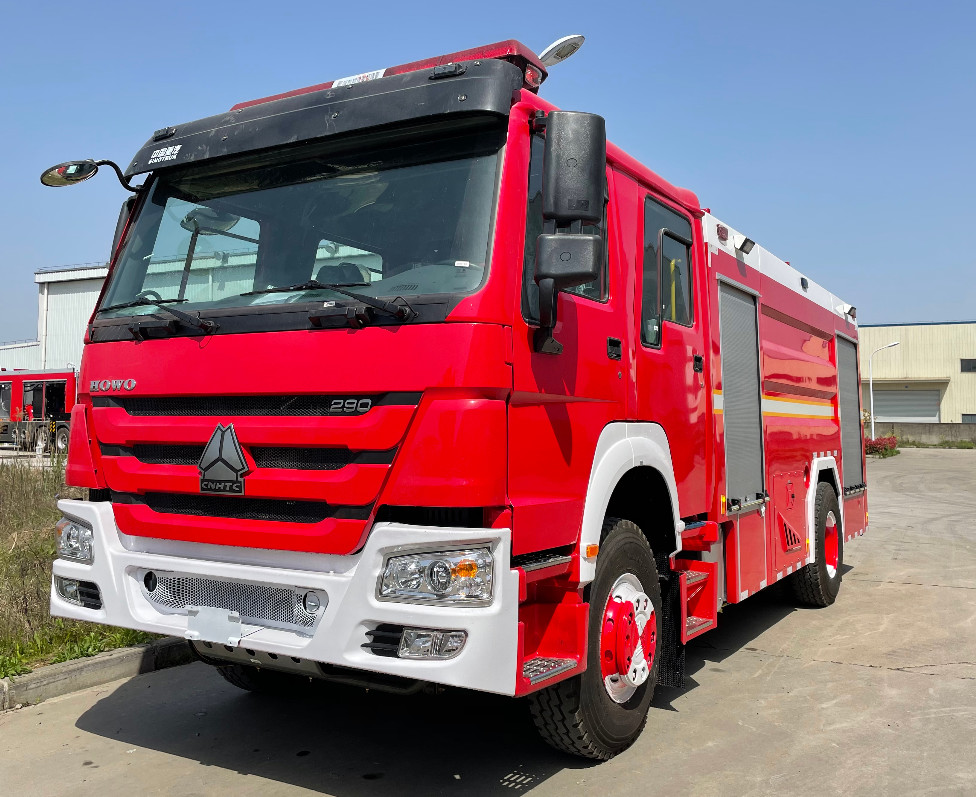

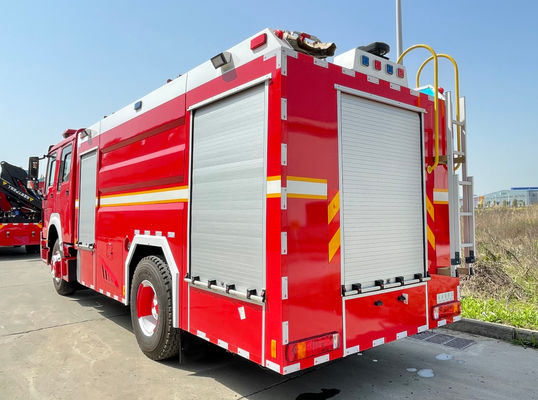

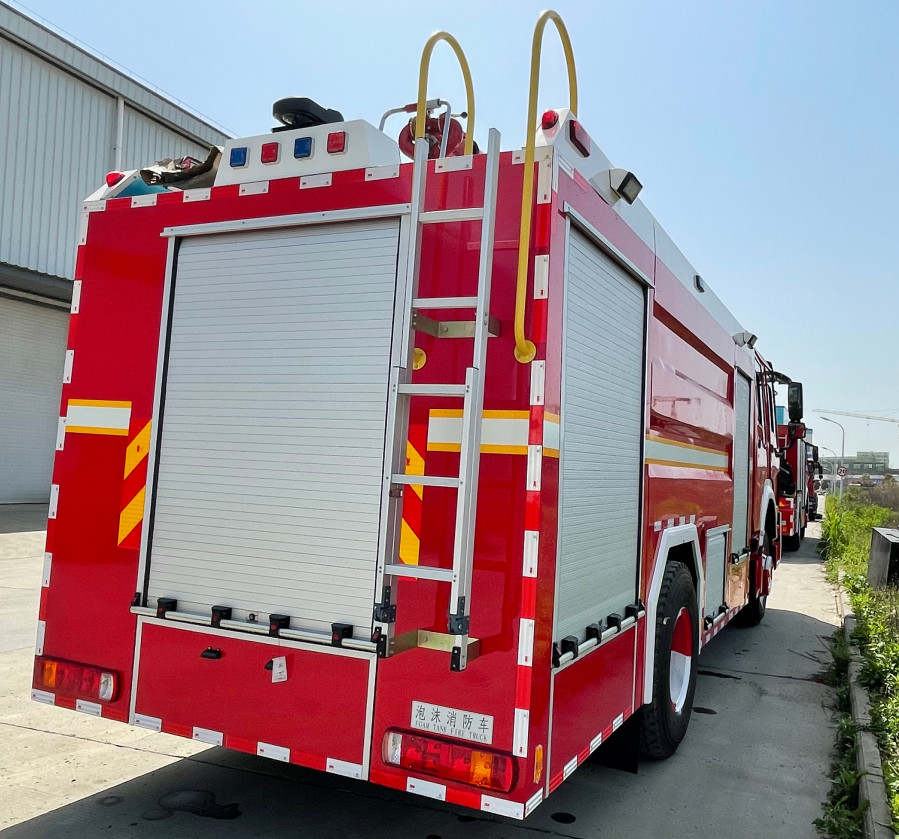

CHINA HOWO 8000L Foam Tanker Fire Truck
I, Main Product Specifications
| Product Name | HOWO foam tank fire truck | ||
| Model | WHG5200GXFPM80 | ||
| Chassis parameters | Chassis Model | ZZ1167M4611W | |
| Overall dimensions (mm) | 8445×2500×3610 | ||
| Gross weight (kg) | 20000 | ||
| Passengers in cab | 3+3 | ||
| Wheelbase(mm) | 4600 | ||
| Engine model | WD615.62 | ||
| Engine power(kw) | 228 | ||
| Tire | 12.00R20 | ||
| Emission standard | EURO 2 | ||
| Displacement (ml) | 9726 | ||
| Max speed(km/h) | 90 | ||
| Fire performance | Tank capacity | Water (kg) | 6000 |
| Foam(kg) | 2000 | ||
| Fire pump | Model | CB20.10/30.60-XZ | |
| Rated flow (L/S) | 60L/S@1.0MPa 30L/S@2.0MPa | ||
| Fire monitor | Model | PL48-64YZ | |
| Rated flow (L/S) | 48-64L/S | ||
| Range (m) | ≥65 | ||
II,Main characteristics
1, High Mobility.
2, Complete functions ,adequate capacity.
3, Suitable for all kinds of roads,complex terrain;also applied for landscape imigation,Road spraying and so on.
4, Can be used as Major fire truck for urban area.
III,Basic Description
This vehicle has the characteristics of large specific power, large person capacity, strong comprehensive performance, centralized and simple operation and so on. It is especially suitable for fighting oil and other oil fire, it can also provide water and foam mixture to the fire sites, and it is a necessary equipment for petroleum and chemical industry, oil transportation terminal, airport and city professional fire fighting.
IV, International Fire Exhibitions
V,Application Cases
