Transit New Generation PRO High Roof Guardian Ambulance (Diesel)
Ⅰ. The Product Specifications
| Product Name |
Transit New Generation PRO High Roof Guardian Ambulance(Diesel) |
| Model |
WHG5042XJH |
| Chassis parameters |
Engine Model |
ECOBOOST4G20B6L |
| Engine Power(kw) |
103 |
| Wheelbase(mm) |
3300 |
| Overall Dimension(mm) |
5820×1974×2690 |
| Carriage Dimension(mm) |
3200×1740×1800 |
| Fuel Type |
Diesel |
| Fuel Consumption |
2.2L |
| Emission Standard |
EuroVI |
| Gross Weight(kg) |
3700 |
| Max Speed(km/h) |
145 |
| Performance |
Automatic Loading Stretcher |
| Sliding Rail Infusion Gripper |
| Oxygen |
| Oxygen inhaler |
| Ventilator Interface |
| Regulators |
II. Basic Description
The new generation PRO long-shaft high-top ambulance is modified by Jiangling Ford's next-generation PRO long-shaft high-top (MT) model. The model uses a Ford PUMA 2.198L diesel engine with speeds of up to 145km/h; With Bosch ABS+EBD+ESP, it is possible to actively detect and analyze road conditions and rationally adjust the driving direction. The car has a novel appearance, reasonable space design and rich configuration (soliciting the configuration of pre-hospital monitoring and the careful design of space requirements and suggestions from major hospitals). The whole vehicle adopts the domestic leading medical vehicle modification technology, including ambulance system, warning system, electrical system, etc., mainly used for health and family planning commissions at all levels, medium/large hospitals, and emergency centers at all levels for rescuing and monitoring the wounded and sick.

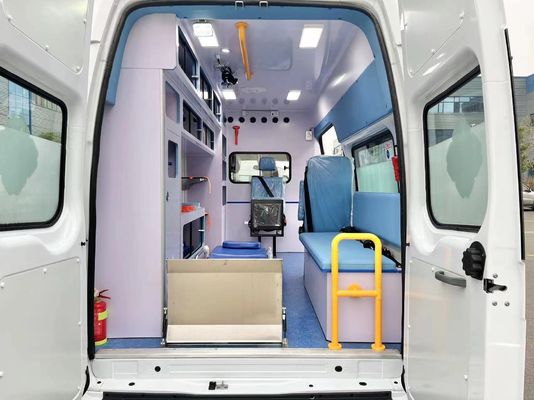

III.Medical cabin ambulance facilities
Ambulance system:
Automatic stretcher: the main body is made of high-quality aluminum alloy material, with the characteristics of light and firm, easy to operate, through operation, the stretcher containing the patient can be quickly and smoothly pushed into or pulled out of the ambulance, the backrest is supported by an adjustment structure, which can be adjusted within 75 degrees, equipped with a patient to bundle the seat belt, which is convenient for the fixation between the patient and the stretcher.
Stretcher platform: made of high-quality stainless steel material, auxiliary stretcher to get on and off.
Medical oxygen control system:
The medical cabin is equipped with a complete closed oxygen supply system, hidden oxygen pipes, and a ventilator interface on the side of the countertop.
Dedicated on-board oxygen supply system assembly with oxygen terminal*2, oxygen inhaler and single-gauge regulator.
Two 10L steel oxygen cylinders with a nominal pressure of 15MPA can be placed in the oxygen cabinet.
