Water Foam Dry Powder Fire Truck 276kw 6x4 Multiple Function
| Place of Origin | CHINA |
|---|---|
| Brand Name | HOWO |
| Certification | CCC(F) |
| Model Number | WHG5260TXFGP100 |
| Minimum Order Quantity | 1 |
| Packaging Details | \ |
| Delivery Time | 90days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 |
Product Details
| Fuel Type | Diesel | Drive Wheel | 6x4 |
|---|---|---|---|
| Condition | New | Gross Vehicle Weight | 26100 |
| Transmission Type | Manual | Emission Standard | Euro 4 |
| Horsepower | 276kw | Driving Type | RHD.LHD |
| Certification | ISO9001 | CABIN | Double |
| LIQUID TANK | Water:5000L; Foam:3000L;Powder:2000kg | PUMP | 60L/S@1.0Mpa;30L/S@2.0Mpa |
| MONITOR | 48-64L/S | COLOR | Red |
| Highlight | Dry Powder Fire Truck 276kw,Dry Powder Fire Truck 6x4,Multiple Function Dry Powder Fire Truck |
||
Product Description

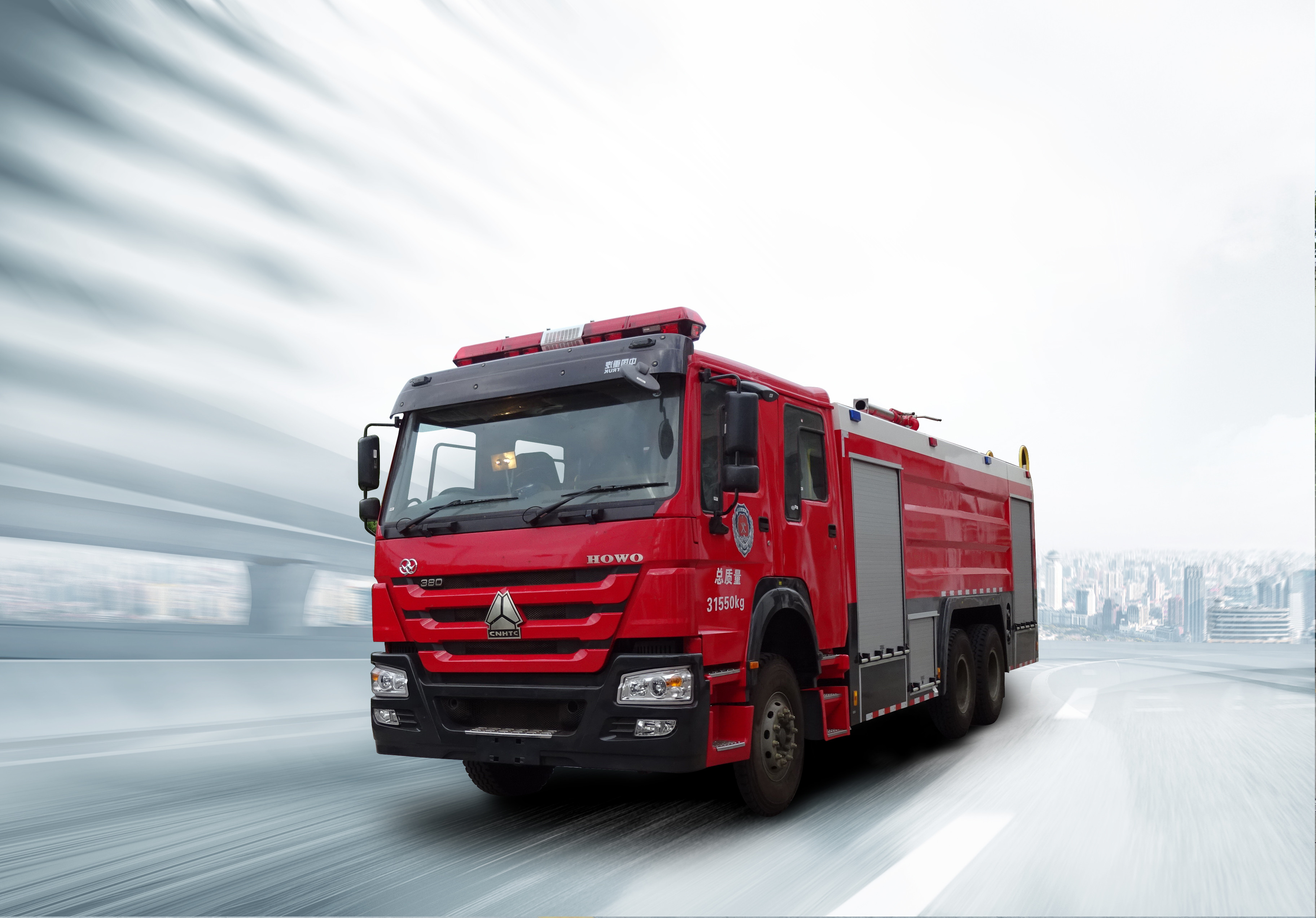

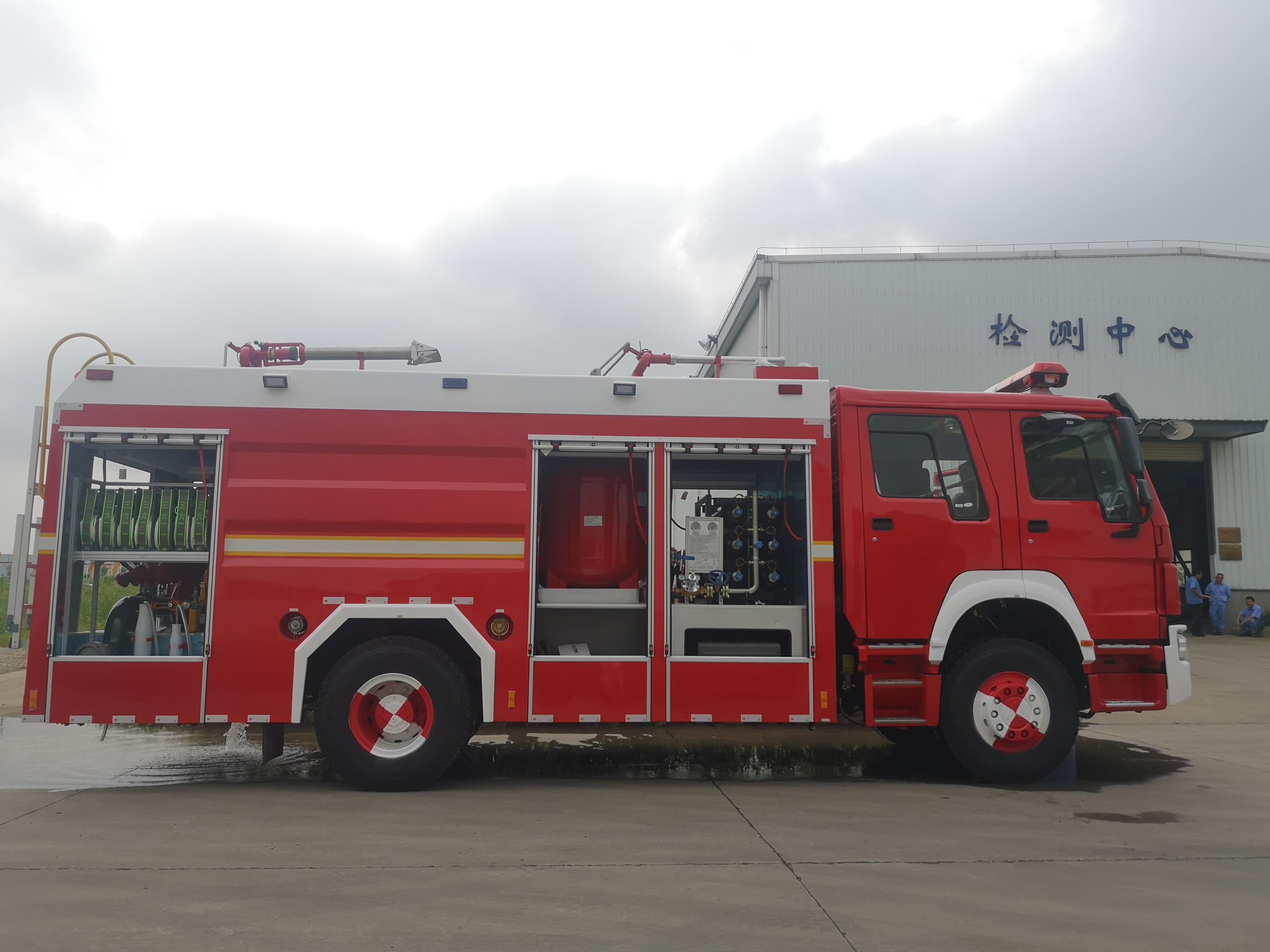

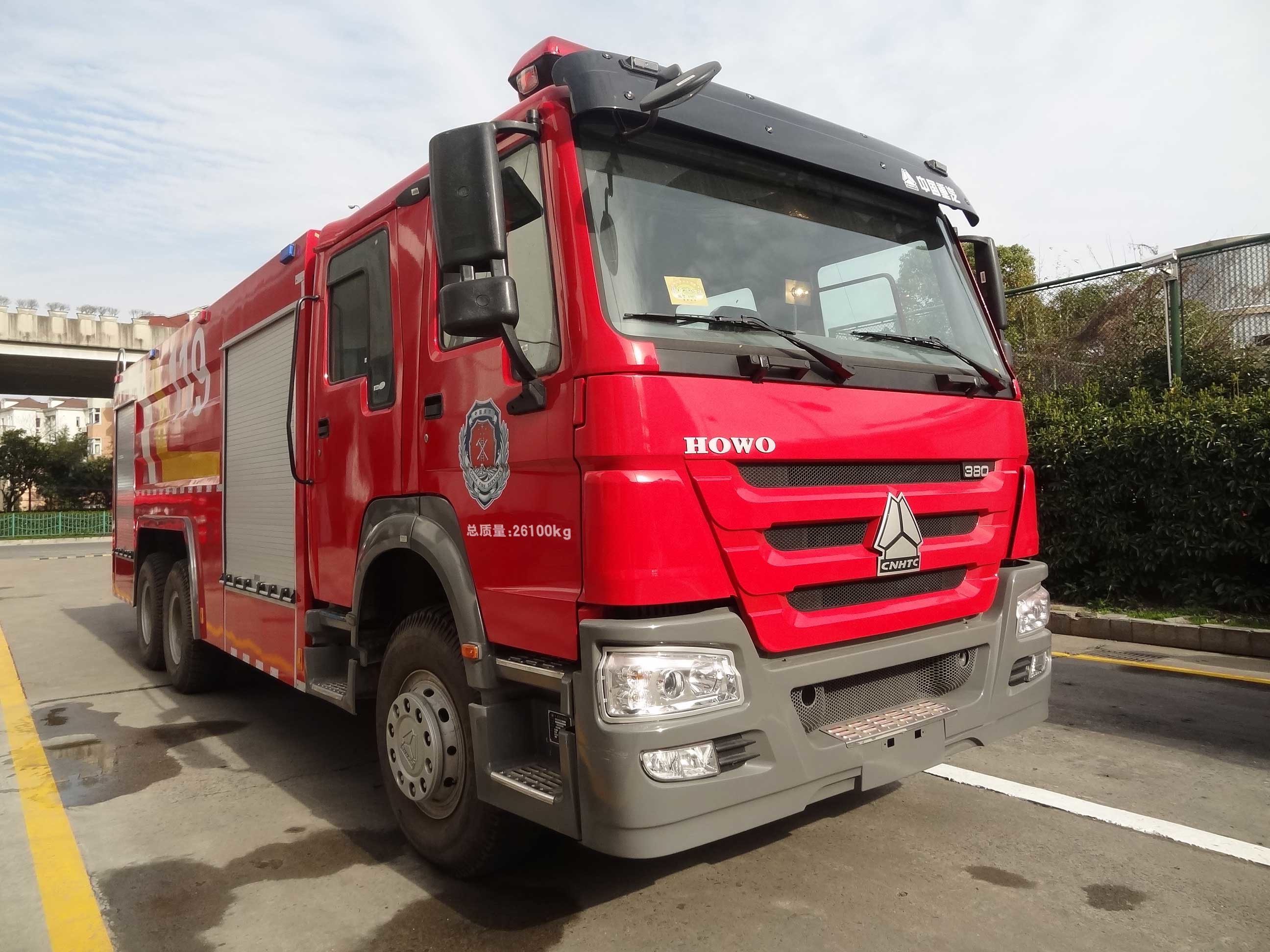

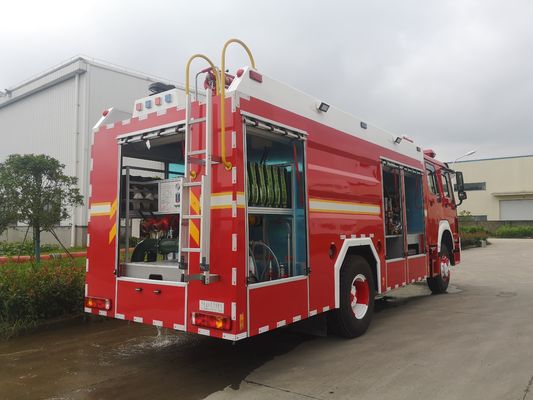

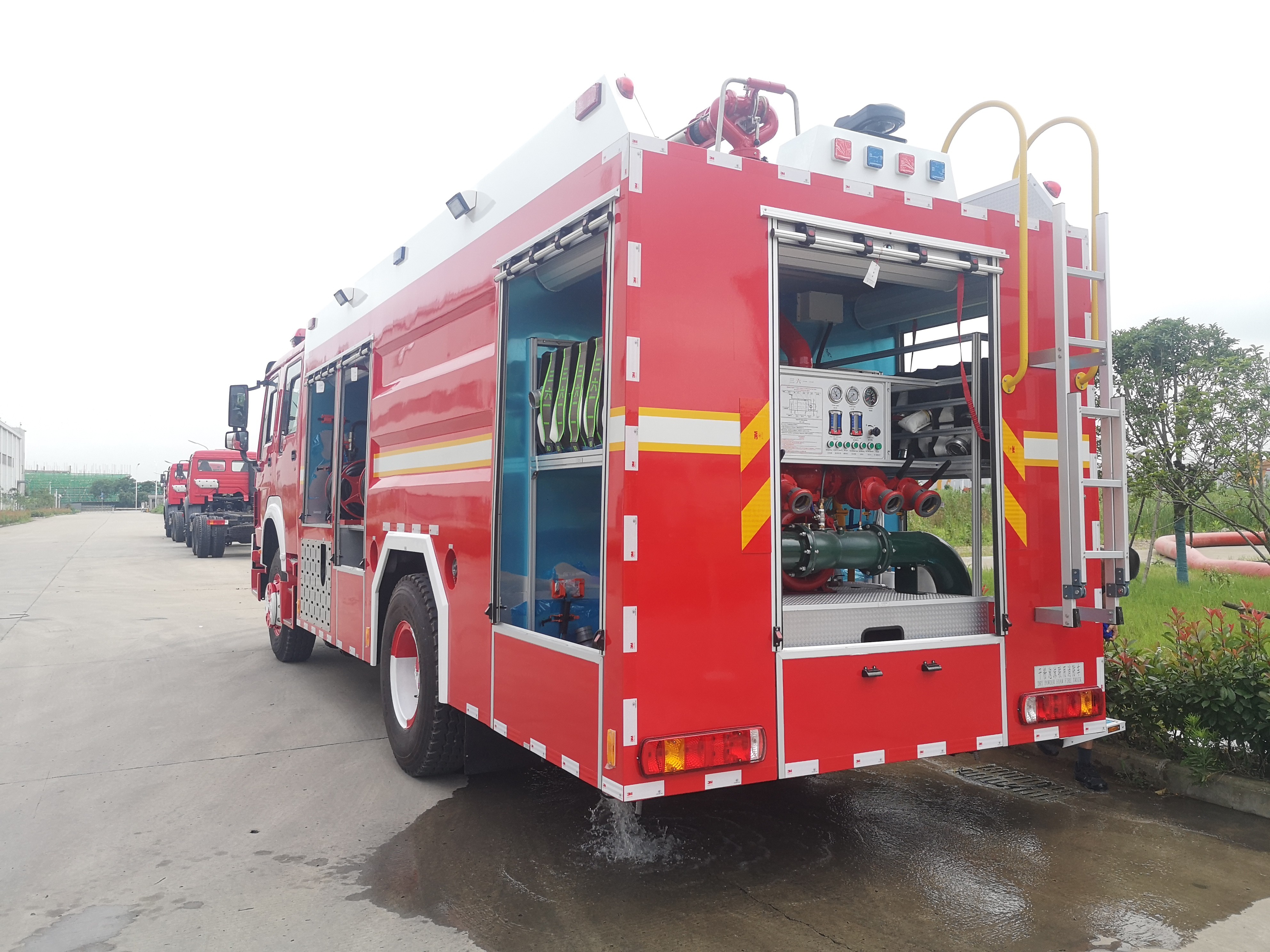

SINOTRUK 276kw 6*4 water/foam/powder multiple function fire engine
I, Main Product Specifications
| Product Name | HOWO Emergency Rescue Dry Powder Foam Combination fire fighting truck | ||
| Model | WHG5260TXFGP100 | ||
| Chassis parameters | Chassis Model | ZZ5347V4647D1 | |
| Overall dimensions (mm) | 9965*2500*3750 | ||
| Gross weight (kg) | 26100 | ||
| Passengers in cab | 2+4 | ||
| Wheelbase | 4600+1350 | ||
| Engine model | D10.38-40 | ||
| Engine power(kw) | 276 | ||
| Powder density | 10.574 | ||
| Emission standard | EURO 4 | ||
| Displacement (ml) | 9726 | ||
| Max speed(km/h) | 70 | ||
| Fire performance | Tank capacity | Water (kg) | 5000 |
| Foam(kg) | 3000 | ||
| Dry Powder(kg) | 2000 | ||
| Fire pump | Model | CB20.10/30.60 | |
| Rated flow (L/S) | 60L/s@1.0MPa;30L/s@2.0Mpa | ||
| Fire monitor | Model | PL48-64YZ | |
| Rated flow (L/S) | 48L/S | ||
| Range (m) | Water: ≥65m；Foam :≥60m | ||
| Dry Powder monitor | Model | PF30 | |
| Rated flow (Kg/S) | ≥25 | ||
| Quantity of Nitrogen gas cylinder | 8 | ||
| Capacity of Nitrogen gas cylinder(L) | 40 | ||
II,Main characteristics
1,Good fire extinguishing performance.
2,Suitable for all kinds of stubborn fire scene; used for flammable gas. Flammable liquids, organic solvents and electrical equipment as well as general matter fires.
3,Mainly used for regular fire and also A type,B type fire, which is preferred good equipment for national and enterprise fire forces.
III,Basic Description
This series of vehicle is mainly used for regular fire and also A type,B type fire, which is preferred good equipment for national and enterprise fire forces.
The vehicle is composed of crew room, storage compartment, tank, pump room, fire pump, power takeoff, inlet and outlet pipe, fire monitor, etc.
The equipment and extinguishing agents on board is a combination of foam fire engine and dry powder fire engine, which can spray different extinguishing agent simultaneously or can be used separately. Suitable for fighting flammable gas. Flammable liquids, organic solvents and electrical equipment as well as general matter fires.
