4000m3 Large Flow Engineering Emergency Vehicle Drainage ISO9001 ODM
  • 4000m3 Large Flow Engineering Emergency Vehicle Drainage ISO9001 ODM
4000m3 Large Flow Engineering Emergency Vehicle Drainage ISO9001 ODM

4000m3 Large Flow Engineering Emergency Vehicle Drainage ISO9001 ODM

Place of Origin China
Brand Name Yunhe
Model Number 4000m³
Product Details
Warranty:
1 Year
Capacity:
4000 M3
After-sales Service Provided:
Online Support,Video Technical Support
Certification:
ISO9001
Color:
Yellow
Function:
Rescue
Highlight:

4000m3 Engineering Emergency Vehicle

,

Engineering Emergency Vehicle ISO9001

,

ODM drainage vehicle

Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
60days
Payment Terms
L/C, T/T
Supply Ability
500
Product Description

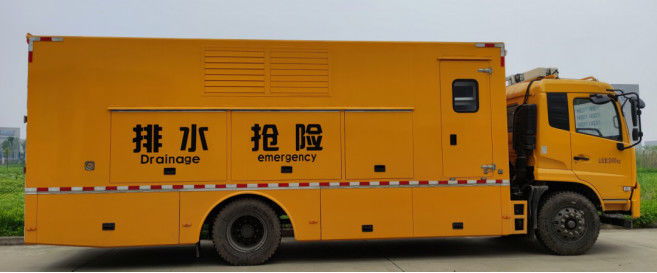

4000m ³ Large Flow Drainage Emergency Rescue Vehicle



No. Item Description
1 Chassis length ≤12,000mm, width≤2550 mm, height≤ 4000mm; The wading depth of chassis is more than 500mm; Total mass ≤ 16T; Vehicle color :engineering yellow; Fuel diesel; The maximum gradient of the vehicle is over than 20 degrees; The number of passengers is 3; Rear wheel drive; 4 hydraulic outriggers; Steering wheel front wheel steering, hydraulic power steering, etc.
2 Generator 230KW diesel generator set, diesel engine and brushless generator, to start the battery and power main switch.
3 Drainage equipment 8 portable large-flow electric pumps, model number: 500-10-22; Flow rate: 500m³/h, lift 10m, single pump weight is 30kg；The pump can achieve a large flow rate of 500m³/h in the field, with a lift of 10m. The exterior of the motor is coated with anti-corrosion coating, and the flow-through parts of the pump are made of stainless steel or aluminum alloy.
4 Control system 1. The water pump control system adopts ABB variable frequency power management control system with Chinese (or English)and centralized control.
2. On time display of operation parameters can realize automatic shutdown protection in case of over-current, over temperature, under load and under voltage.
5 Cable Single pump is equipped with waterproof cable, equipped with waterproof plug with waterproof grade IP67, 20m/piece, equipped with 2 pieces; Single pump comes with 10 meters;50 meters in total
6 Drainage pipe Single pump with DN250mm drainage pipe, made of high-strength wear-resistant woven layer lined with polyurethane material, with quick connector, 20 meters /piece, with 2 pipes, 40 meters in total.
7 Emergency lighting system The top of the cab is equipped with lifting lamps, which can be operated by wire or remote control.
8 Accessories Floating ring, floating rope, fire extinguisher.




4000m3 Large Flow Engineering Emergency Vehicle Drainage ISO9001 ODM 0
