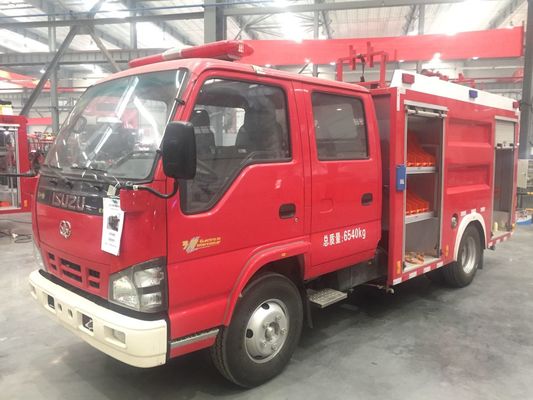

ISUZU 4x2 Small Forest Fire Truck Diesel Type With 2000L Water Tank
| Place of Origin | CHINA |
|---|---|
| Brand Name | ISUZU |
| Certification | CCC(F) |
| Model Number | WHG5070GXFSG20/WVIA |
| Minimum Order Quantity | 1 |
| Packaging Details | \ |
| Delivery Time | 90days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 |
Product Details
| Condition | New | Drive Wheel | 4x2 |
|---|---|---|---|
| Fuel Type | Diesel | Tank Capacity | 3001 - 5000L,< 2000L |
| Emission Standard | Euro 3,EURO 5,Euro 4,Euro 2 | Horsepower | 120 - 250hp |
| Color | Red | Drive Type | 4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice |
| Name | Firefighting Rescue Equipment Fire Truck | Tank Volume | 2000L |
| Highlight | Forest Fire Truck Diesel,4x2 Forest Fire Truck,2000L Water Tank Fire Truck |
||
Product Description
small ISUZU 4*2 Forest Fire Fighting Truck with 2000L water tank
I,Main Product Specifications
| Product Name | ISUZU water tank fire truck | ||
| Model | WHG5070GXFSG20/WVIA | ||
| Chassis parameters | Chassis Model | QL1070BUKWY | |
| Overall dimensions (mm) | 6830×1930×2850 | ||
| Gross weight (kg) | 6800 | ||
| Passengers in cab | 2+3 | ||
| Wheelbase(mm) | 3815 | ||
| Engine model | 4KH1CN6LB | ||
| Engine power(kw) | 88 | ||
| Tire | 7.00R16LT 14PR(6+1) | ||
| Emission standard | EURO 6 | ||
| Displacement (ml) | 2999 | ||
| Max speed(km/h) | 95 | ||
| Fire performance | Tank capacity | Water (kg) | 2000 |
| Fire pump | Model | CB10/20-XZ | |
| Rated flow (L/S) | 20L/s@1.0MPa | ||
| Fire monitor | Model | PS20 | |
| Rated flow (L/S) | 20 | ||
| Range (m) | ≥45 | ||
II,Main characteristics
1,High Mobility.
2,Complete functions ,adequate capacity.
3,Suitable for all kinds of roads,complex terrain;also applied for landscape imigation,Road spraying and so on.
4,Can be used as Major fire truck for urban area.
III,Basic Description
This vehicle has the characteristics of large specific power, large person capacity, strong comprehensive performance, centralized and simple operation and so on. It is especially suitable for fighting oil and other oil fire, it can also provide water and foam mixture to the fire sites, and it is a necessary equipment for petroleum and chemical industry, oil transportation terminal, airport and city professional fire fighting.
IV, International Fire Exhibitions
V,Application Cases
