HOWO Dry Powder Fire Truck DCP Foam Combination For Emergency Rescue
| Minimum Order Quantity | 1 |
|---|---|
| Delivery Time | 90days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 |
Product Details
| Overall Dimensions (mm) | 9965*2500*3750mm | Water Tank Capacity | 5000kg |
|---|---|---|---|
| Foam Tank Capacity | 3000kg | DCP Tank Capacity | 2000kg |
| Fire Pump | 60L/s@1.0MPa;30L/s@2.0Mpa | Fire Monitor | 48L/S |
| Dry Powder Monitor | 25kg/s | Quantity Of Nitrogen Gas Cylinder | 8 |
| Highlight | HOWO Dry Powder Fire Truck,Rescue Dry Powder Fire Truck,Emergency Foam Fire Truck |
||
Product Description

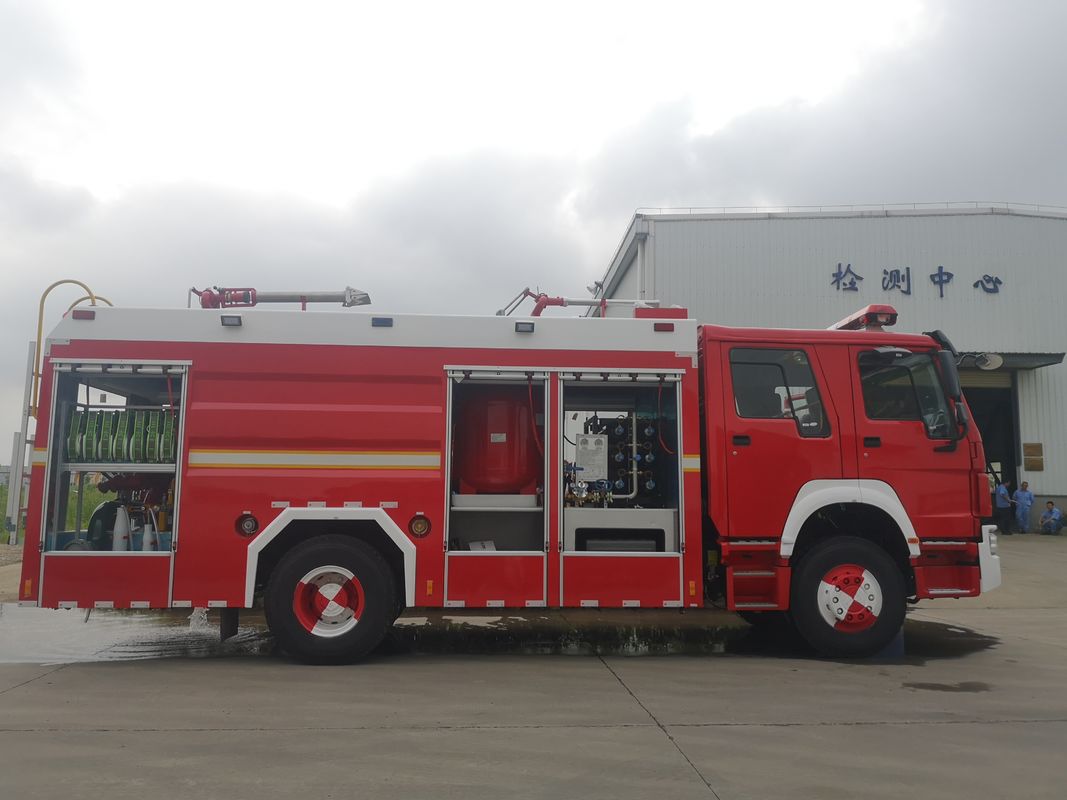

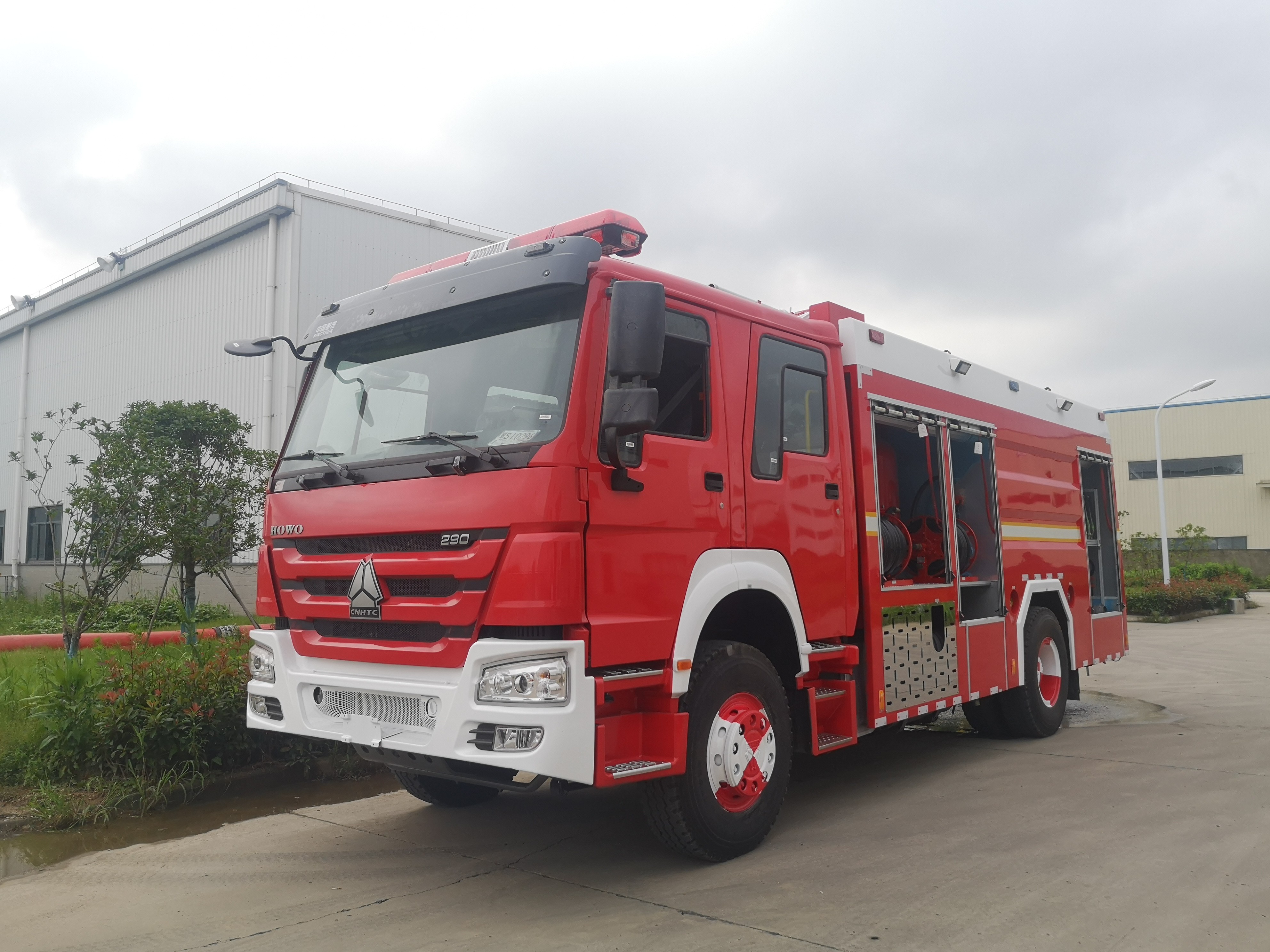

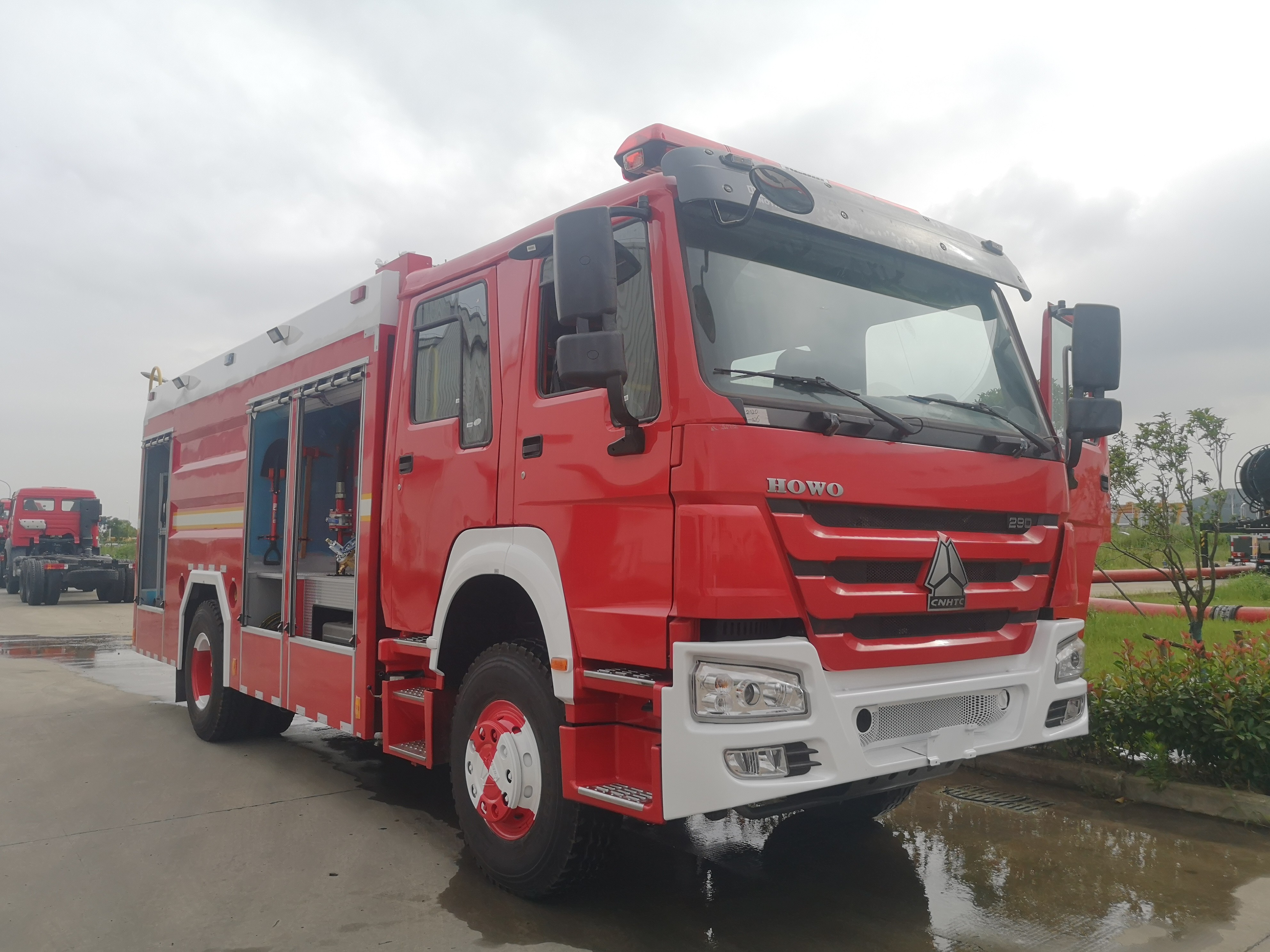

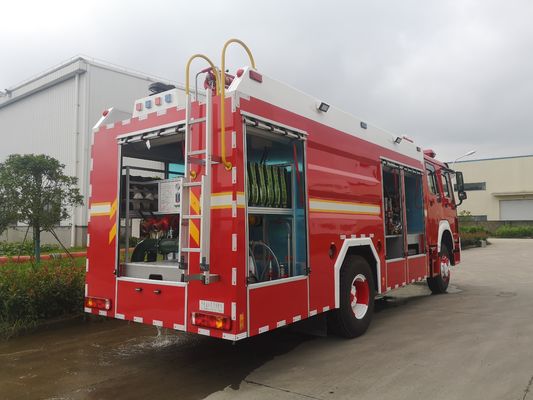

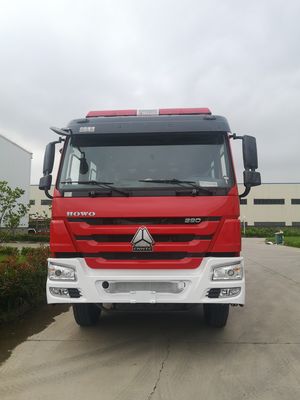

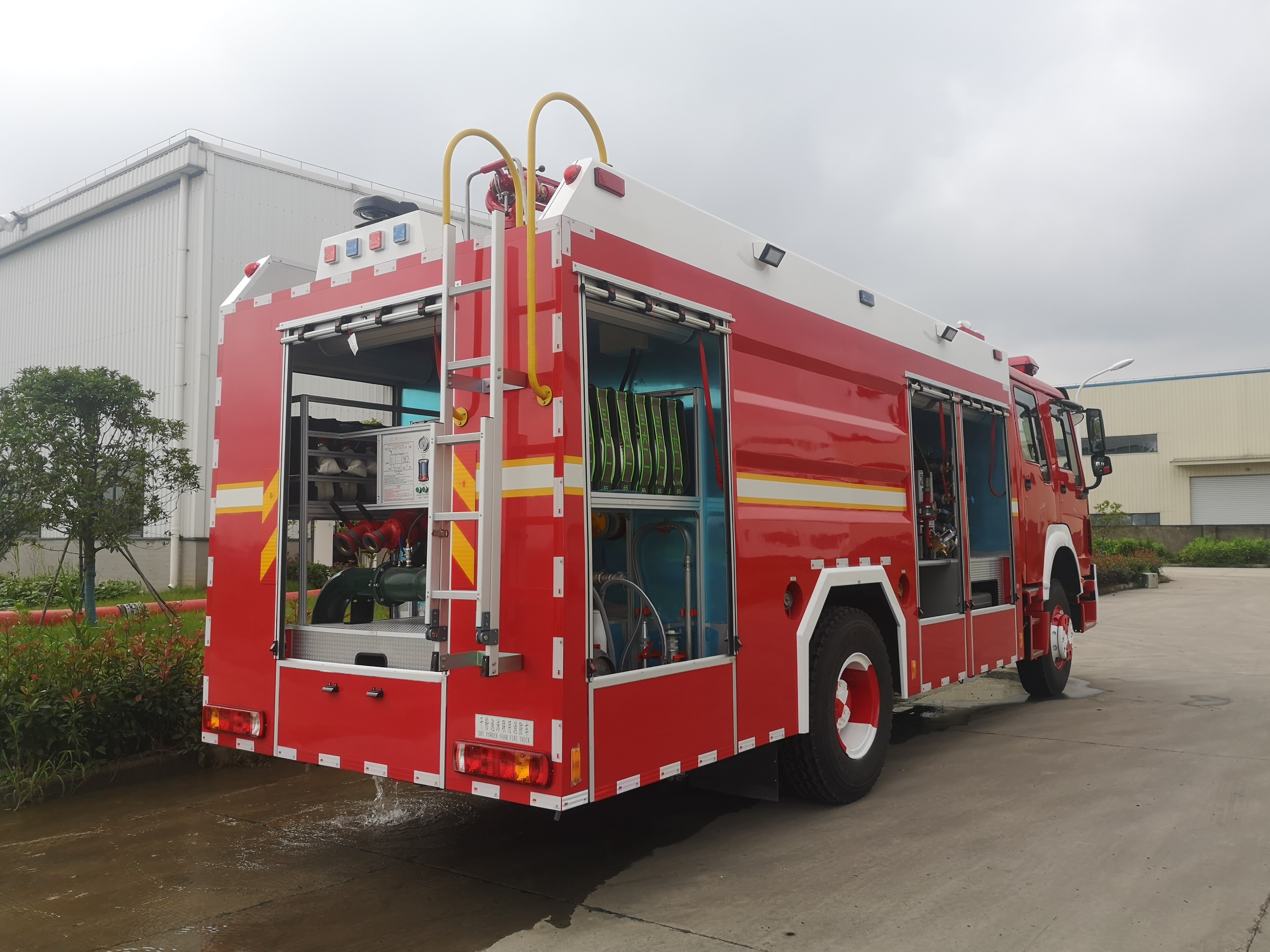

HOWO Emergency Rescue DCP & Foam Combination fire fighting truck
Ⅰ.The Product Specifications
|
Product Name |
HOWO Emergency Rescue Dry Powder Foam Combination fire fighting truck |
||
| Model | WHG5260TXFGP100 | ||
| Chassis parameters | Chassis Model | ZZ5347V4647D1 | |
| Overall dimensions (mm) | 9965*2500*3750 | ||
| Gross weight (kg) | 26100 | ||
| Passengers in cab | 2+4 | ||
| Wheelbase | 4600+1350 | ||
| Engine model | D10.38-40 | ||
| Engine power(kw) | 276 | ||
| Powder density | 10.574 | ||
| Emission standard | EURO IV | ||
| Displacement (ml) | 9726 | ||
| Max speed(km/h) | 70 | ||
| 消防性能 Fire performance | Tank capacity | Water (kg) | 5000 |
| Foam(kg) | 3000 | ||
| Dry Powder(kg) | 2000 | ||
| Fire pump | Model | CB20.10/30.60 | |
| Rated flow (L/S) | 60L/s@1.0MPa;30L/s@2.0Mpa | ||
| Fire monitor | Model | PL48-64YZ | |
| Rated flow (L/S) | 48L/S | ||
| Range (m) | 水 Water: ≥65m；泡沫 Foam :≥60m | ||
| Dry Powder monitor | Model | PF30 | |
| Rated flow (Kg/S) | ≥25 | ||
| Quantity of Nitrogen gas cylinder | 8 | ||
| Capacity of Nitrogen gas cylinder(L) | 40 | ||
Ⅱ.Main characteristics
1.Good fire extinguishing performance.
2.Suitable for all kinds of stubborn fire scene; used for flammable gas. Flammable liquids, organic solvents and electrical equipment as well as general matter fires.
3.Mainly used for regular fire and also A type,B type fire, which is preferred good equipment for national and enterprise fire forces.
III.Basic Description
This series of vehicle is mainly used for regular fire and also A type,B type fire, which is preferred good equipment for national and enterprise fire forces. The vehicle is composed of crew room, storage compartment, tank, pump room, fire pump, power takeoff, inlet and outlet pipe, fire monitor, etc.
The equipment and extinguishing agents on board is a combination of foam fire engine and dry powder fire engine, which can spray different extinguishing agent simultaneously or can be used separately. Suitable for fighting flammable gas. Flammable liquids, organic solvents and electrical equipment as well as general matter fires.
Ⅳ.International Fire Exhibitions
Ⅴ.Application Cases
